Waterproof Moving Head OutdoorAre you here: Home-->Product-->Waterproof Moving Head Outdoor
  • Product Name

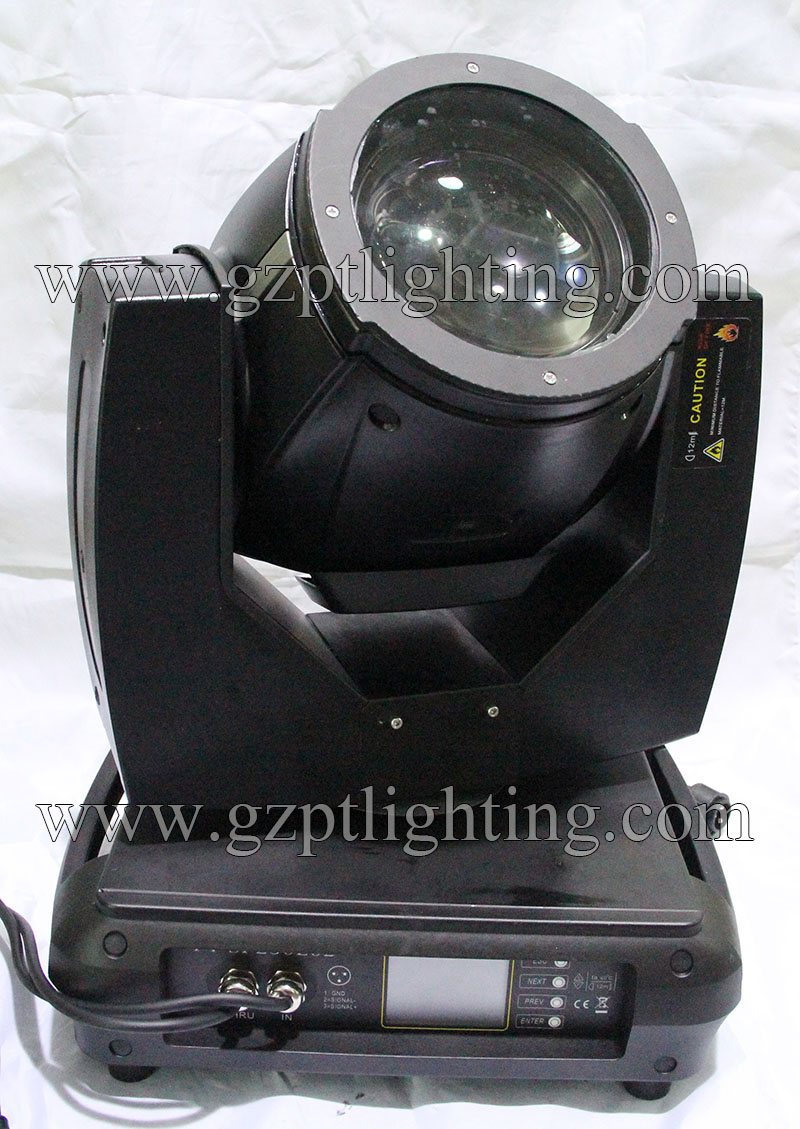

    GL-230WBM 230w 7r waterproof moving head sharpy outdoor beam moving head IP65


    Product Introduction

    230w 7r waterproof moving head sharpy outdoor beam moving head IP65

  • Product Name

    GL-230WBM 230w 7r waterproof moving head sharpy outdoor beam moving head IP65


    Product Introduction

    230w 7r waterproof moving head sharpy outdoor beam moving head IP65

  • Product Name

    GL-230WBM 230w 7r waterproof moving head sharpy outdoor beam moving head IP65


    Product Introduction

    230w 7r waterproof moving head sharpy outdoor beam moving head IP65

  • Product Name

    GL-230WBM 230w 7r waterproof moving head sharpy outdoor beam moving head IP65


    Product Introduction

    230w 7r waterproof moving head sharpy outdoor beam moving head IP65

  • Product Name

    GL-230WBM 230w 7r waterproof moving head sharpy outdoor beam moving head IP65


    Product Introduction

    230w 7r waterproof moving head sharpy outdoor beam moving head IP65

  • Product Name

    GL-230WBM 230w 7r waterproof moving head sharpy outdoor beam moving head IP65


    Product Introduction

    230w 7r waterproof moving head sharpy outdoor beam moving head IP65

  • Product Name

    GL-230WBM 230w 7r waterproof moving head sharpy outdoor beam moving head IP65


    Product Introduction

    230w 7r waterproof moving head sharpy outdoor beam moving head IP65

ParametersVideoDoc

*Voltage:90V-240V/50Hz-60Hz
*Lamp:OSRAM SIRIUS HRI 230W
*Ballast:Electronic Ballast
*Color temperature:8500K
*Lamp Bulb Average Life:2200H
*Color wheel:14colors+blank
*Gobo wheel:17gobos+blank
*Prism: 8 prism with two dimensional rotation, so that you can part or gather the beam lights.
*Lens:Precisely glued optical lens
*Frost:Spot angle adjustable
*Aperture:7 levels of beam adjustment
*Focus:Linear focusing
*Dimmer:0-100% on linear control
*P/T movement:Pan 540° tilt 250° with automatic system reset
*Beam angle:Parallel 0-3.8°
*Strobe: Double chip(0.5-13times per second)
*Motor quantity: 13PCS 3-Phase Step Motors,super quiet type,drive 16bit
*Control signal:Dmx512
*Channel mode optional:16 /20
*Other features:Remote control of lamp switch, display of lamp utility time, speed control of fan,
                       and by mechanical shutter a 70% of lamp source power loss can be reduced
*Appearance:Thermostable plastic+molded alloy
*Lamp color:Black
*Protection grade:IP65
*Size(L*W*H):382*328*480mm
*Net.Weight: 19kg
*Carton Size:420x470x770mm  G.W:21KG

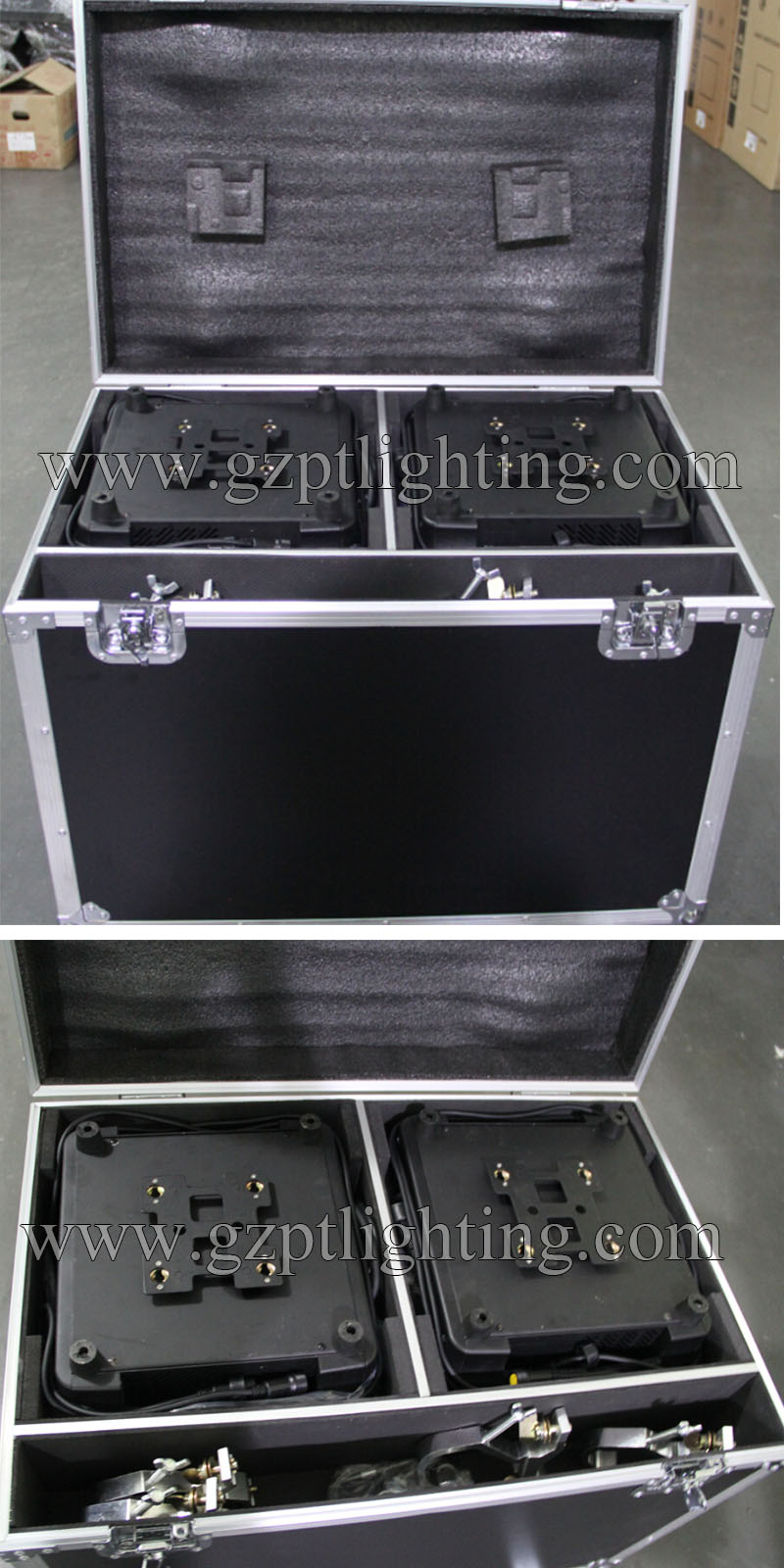

*Flight case(2in1):820x550x720mm  G.W:69KG
